Open Face 6″ – 20″

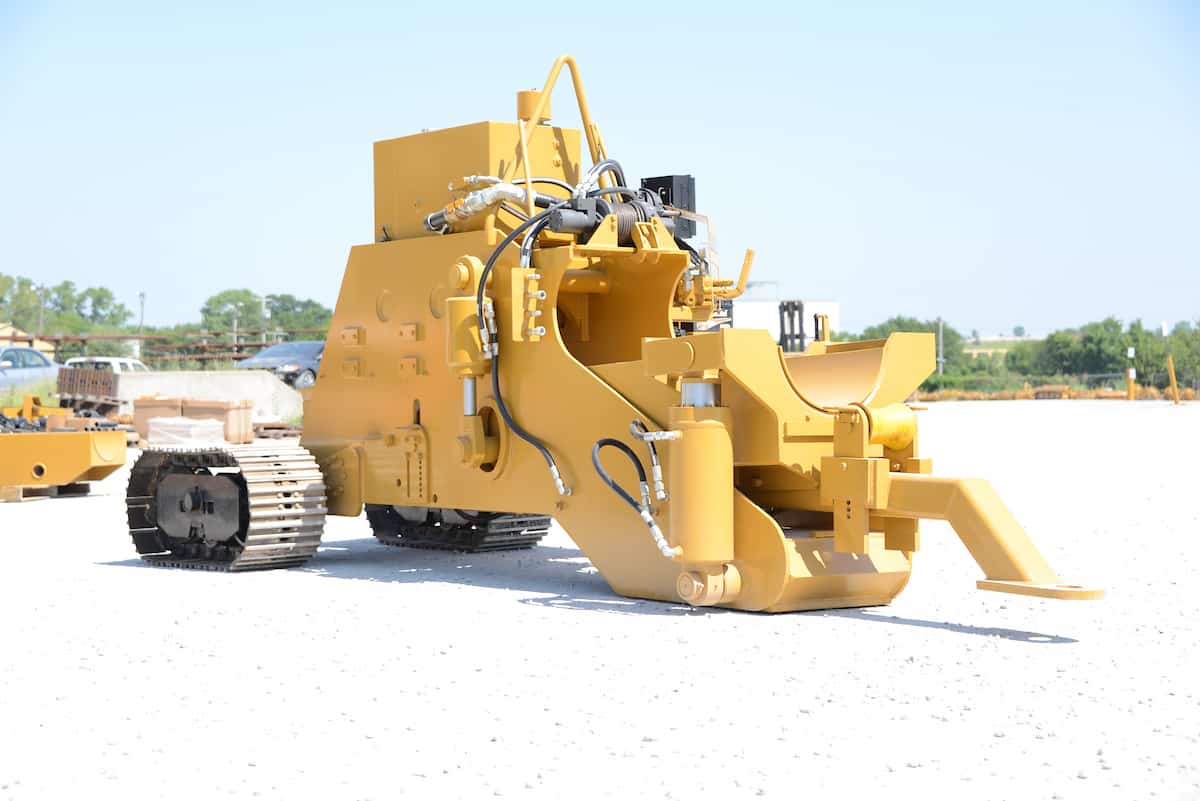

DMI International 6-20 Pipe Bending Machine with Open Face

PRODUCT DETAILS



BORE (IN)STROKE (IN)ROD (IN)
InBoard Cylinder762.25
OutBoard Cylinder8146
Pin Up Cylinder5232.25
Clamp Cylinder
Pump TypeVane, Fix Volume
Pump Flow46 gpm
Valve TypeManual, 3 or 5 section
Filtration3 Micron, Pressure Line
Hydraulic System Max Operating Pressure3000 psig
Hydraulic Reservoir50 gal187.5 L



Dia (in)
Minimum6.625
Maximum20

ManufacturerQuincy QR-325
Drive TypeHydraulic Motor
Pressure210 psig
Flow17.4 acfm @ 175 psig

Length17′-5″5,309 mm
Width8′-0″2,438 mm
Height7′-7″2,311 mm
Weight (lbs/kg)11,500 lbs5,227 kg
Pneumatic11.0 x 16

ManufacturerRamsey
Drive TypeHydraulic Motor
Pulling Force10,000 lbf
Cable Diameter.4375″
Free Wheeling Drum

Perkins Diesel67hp
Operating Speed2200rpm
Fuel Tank15gal

  • Hydraulic driven air compressors
  • Hydraulic mandrel controls with five-section valve & 3/4″ access connections
  • Tires or Tracks
  • Cold weather operating kit (-40º)

NOMINAL PIPE O.D.MAX WALL THICKNESS BY GRADERECOMMENDED BEND
IN/MMX52X60X65X70X80X100DEGREE PER ARC FOOTRADIUS FEETMAXIMUM 40 FOOT JOINT
20 / 5081.2971.1161.0260.9500.8260.6560.906927.00
18 / 4571.6311.4011.2881.1911.0350.8191.105233.00
16 / 4061.7351.8111.6641.5381.3351.0551.503845.00
14 / 3562.1042.3902.2072.0481.7841.4101.703451.00
12.75 / 324----2.4151.7242.302569.00
10.75 / 273-----2.3732.802084.00
8.625 / 219------3.8015114.00
6.625 / 168------4.5013135.00

• A cell marked with a (-) represents the ability to bend up to 2.00″ thick. For wall thickness greater than that, contact DMI.
• Figures above represent empirical data and are recommendation only. They do not constitute a warranty.
• All bends are based on the use of DMI mandrels and approved Die Sets.
• For heavy wall pipe special Die Sets may be required.
• Figures shown above are provided as “Average” and will vary depending on the following:

  • Actual wall thickness of the pipe.
  • Actual Yield Stress of the pipe.
  • Skill of the Operators handling the Bending Machine and Mandrel.
  • Origin and Quality of the pipe.
  • Type of Die and Bending Set being used.

• Normal unbend tangent for PBM 6-20 is 5′
• Normal unbend tangent for PBM 16-30 is 6′
• Normal unbend tangent for PBM 22-36 is 6′
• Normal unbend tangent for PBM 32-42 is 7′
• Normal unbend tangent for PBM 48-60 is:

  • 11′ for Stiffback end with pipe support
  • 13′ for Stiffback end with NO pipe support
  • 8′ for Pinup end with pipe support
  • 9′ for Pinup end with NO pipe support

Disclaimer:
Technical information provided for this equipment regarding performance, specifications, dimension and weights can vary depending on final configuration of the equipment. Please contact DMI International for actual specifications at time of shipment.

DMI International does not accept responsibility for errors regarding the technical information, nor the consequences of any errors, nor the consequences to changes in the specifications contained herein. DMI International reserves the right to modify the equipment performance and specifications without notice.
