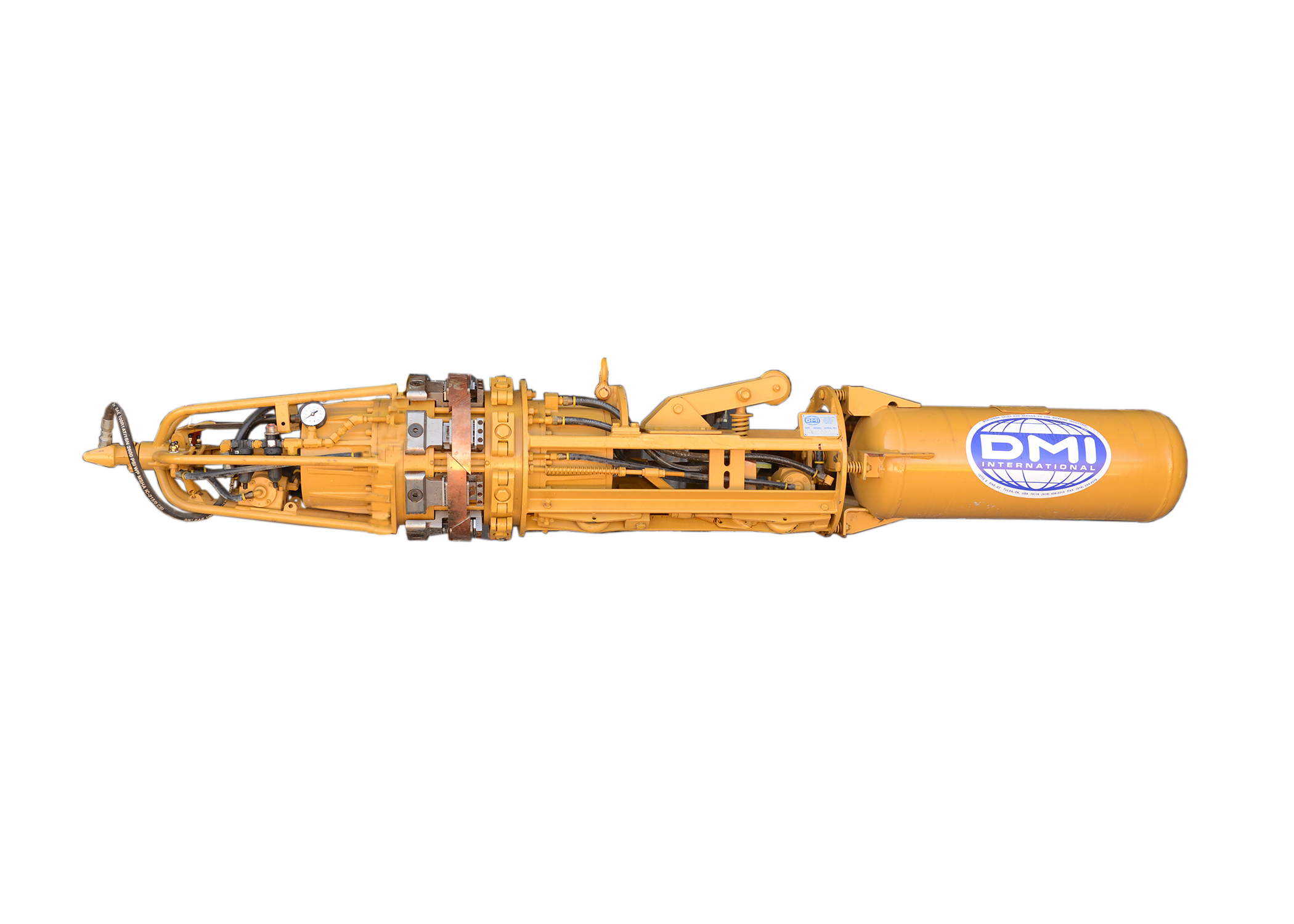

Pneumatic Clamp with and without Copper Shoes
Copper shoes can be outfitted on clamps to provide a copper backing material for the initial welding root pass. Clamps with copper back up plates usually do not have centering stops.
Pneumatic Clamp with and without Copper Shoes Features
- Standard sizes 6″-60″, available upon request
- Clamps 12″-60″ will cover two pipe sizes by use of conversion kits
- Adjustable for the various wall thickness within clamp’s range
- Powered travel drive available on models 12″-60″
- For efficient operation, the compressed air pressure should be 180-200 PSI. (12.4-13.8 Bar)
- Maximum safe working pressure in 225 PSI (15.5 Bar)
PRODUCT DETAILS
- Standard sizes 6″-60″, available upon request
- Clamps 12″-60″ will cover two pipe sizes by use of conversion kits
- Adjustable for the various wall thickness within clamp’s range
- Powered travel drive available on models 12″-60″
- For efficient operation, the compressed air pressure should be 180-200 PSI. (12.4-13.8 Bar)
- Maximum safe working pressure in 225 PSI (15.5 Bar)
| NON POWERED CLAMP, PULL TYPE | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MODEL | PIPE SIZE (in/mm) | LENGTH (in/mm) | WIDTH (in/mm) | HEIGHT (in/mm) | VOLUME (cu-ft/cu-m) | WEIGHT (lbs/kg) | ||||||
| IPLC 6 | 6 / 152 | 38 / 965 | 5.5 / 140 | 6.5 / 165 | 0.8 / 0.02 | 98 / 45 | ||||||
| IPLC 8 | 8 / 203 | 50 / 1270 | 7.5 / 191 | 7.5 / 191 | 1.6 / 0.05 | 130 / 59 | ||||||
| IPLC 10 2-SECTION | 10 / 254 | 58 / 1473 | 12 / 305 | 12 / 305 | 4.8 / .014 | 178 / 81 | ||||||
| IPLC 10 3-SECTION | 10 / 254 | 58 / 1473 | 12 / 305 | 12 / 305 | 4.8 / 0.14 | 212 / 96 | ||||||
| IPLC 12 2-SECTION | 12-14 / 324-356 | 60 / 1524 | 10.75 / 273 | 10.75 / 273 | 4.0 / 0.11 | 204 / 93 | ||||||
| IPLC 12 3-SECTION | 12-14 / 324-356 | 60 / 1524 | 10.75 / 273 | 10.75 / 273 | 4.0 / 0.11 | 257 / 117 | ||||||
| IPLC 14-16 | 14-16 / 356-406 | 67 / 1702 | 13 / 330 | 13.5 / 343 | 6.8 / 0.19 | 225 / 102 | ||||||
| IPLC 18-20 | 18-20 / 457-508 | 96 / 2438 | 16.5 / 419 | 18.5 / 470 | 17.0 / 0.48 | 418 / 190 | ||||||
| MODEL | PIPE SIZE (in/mm) | LENGTH (in/mm) | WIDTH (in/mm) | HEIGHT (in/mm) | VOLUME (cu-ft/cu-m) | WEIGHT (lbs/kg) | CFM |
|---|---|---|---|---|---|---|---|
| IPLC 10 | 10 / 254 | 62 / 1575 | 10 / 254 | 11.5 / 292 | 4.1 / 0.12 | 300 / 136 | 25 |
| IPLC 12-14 | 12-14 / 305 | 109 / 2769 | 10.75 / 273 | 10.75 / 273 | 7.3 / 0.21 | 294 / 133 | 25 |
| IPLC 14-16 | 14-16 / 356-406 | 112.5 / 2858 | 15 / 381 | 15 / 381 | 14.6 / 0.41 | 550 / 240 | 25 |
| IPLC 16-18 | 16-18 / 406-457 | 91 / 2311 | 13 / 330 | 13 / 330 | 8.9 / 0.32 | 500 / 227 | 25 |
| IPLC 20-22 | 20-22 / 508-559 | 102 / 2591 | 18 / 457 | 18 / 457 | 19.1 / 0.69 | 770 / 349 | 40 |
| IPLC 24-26 | 24-26 / 610-660 | 111 / 2819 | 21 / 533 | 21 / 533 | 28.3 / 1.05 | 1010 / 458 | 40 |
| IPLC 28-30 | 28-30 / 711-762 | 115 / 2870 | 28 / 711 | 28 / 711 | 52.2 / 1.45 | 1290 / 585 | 40 |
| IPLC 30-32 | 30-32 / 762-813 | 115 / 2870 | 28 / 711 | 28 / 711 | 52.2 / 1.73 | 1400 / 635 | 40 |
| IPLC 34-36 | 34-36 / 864-914 | 122 / 3099 | 34 / 864 | 35.5 / 902 | 85.2 / 2.41 | 1700 / 773 | 90 |
| IPLC 36-38 | 36-38 / 914-965 | 128 / 3251 | 36 / 914 | 37.5 / 953 | 100.0 / 2.83 | 1750 / 795 | 90 |
| IPLC 40-42 | 40-42 / 1016-1067 | 141 / 3581 | 38 / 965 | 38 / 965 | 117.8 / 3.94 | 3100 / 1406 | 90 |
| IPLC 46-48 | 46-48 / 1168-1219 | 145 / 3683 | 45 / 1143 | 46.5 / 1181 | 175.6 / 4.97 | 3140 / 1427 | 90 |
| IPLC 52-54 | 52-54 / 1321-1372 | 188 / 4775 | 52 / 1321 | 53.5 / 1359 | 302.7 / 8.57 | 4950 / 2250 | 90 |
| IPLC 56 | 56 / 1422 | 188 / 4775 | 54 / 1372 | 55.5 / 1410 | 326.1 / 9.23 | 5400 / 2455 | 90 |
| IPLC 60 | 60 / 1524 | 191 / 4851 | 58 / 1473 | 60 / 1524 | 384.7 / 10.89 | 6000 / 2727 | 90 |
