Power Units

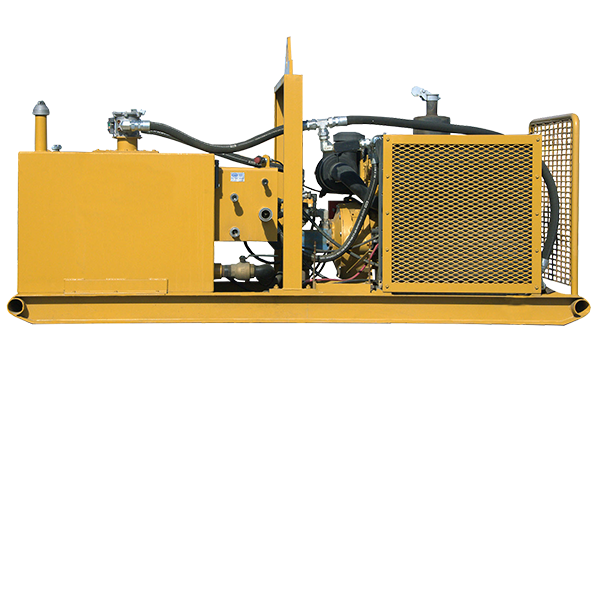

DMI International Hydraulic Power Unit

PRODUCT DETAILS

  • Available in diesel or electric drive, each unit is self-contained and includes everything necessary to power the Pipe Facing Machine
  • Diesel Unites come equipped with an electric start, water-cooled, diesel engine
  • Electric Units contain a heavy-duty industrial motor, disconnect switch with thermal protection, and an On/Off switch for operation. Electric Units are available in a variety of voltages and may be ordered as 50 Hz or 60 Hz
  • All units come equipped with a dual-action hydraulic oil pump and a heavy-duty oil filter

  • Length: 124″ / 3,150 mm
  • Width: 50″ / 1,270 mm
  • Height: 64″ / 1,626 mm

  • Perkins Diesel: 97 hp
  • Operating Speed: 2200 rpm
  • Fuel Tank: 40 gal

  • Pump Type: Vane, Fix Volume
  • Pump Flow: 70 gpm
  • Valve Type: Manifold on Facing Machine
  • Filtration: 10 Micron, Pressure Line
  • Hydraulic System Max Operating pressure: 2500
  • Dydraulic Reservoir: 100 gal / 375 L
