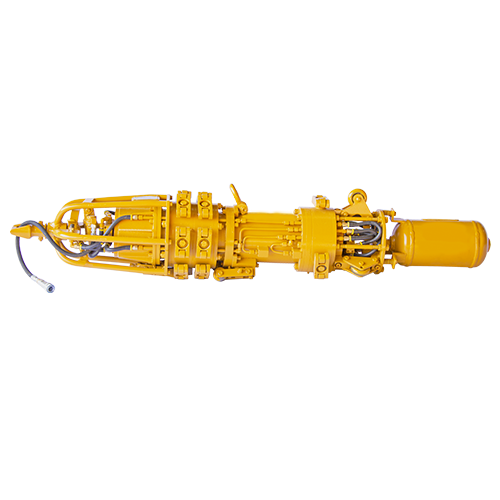

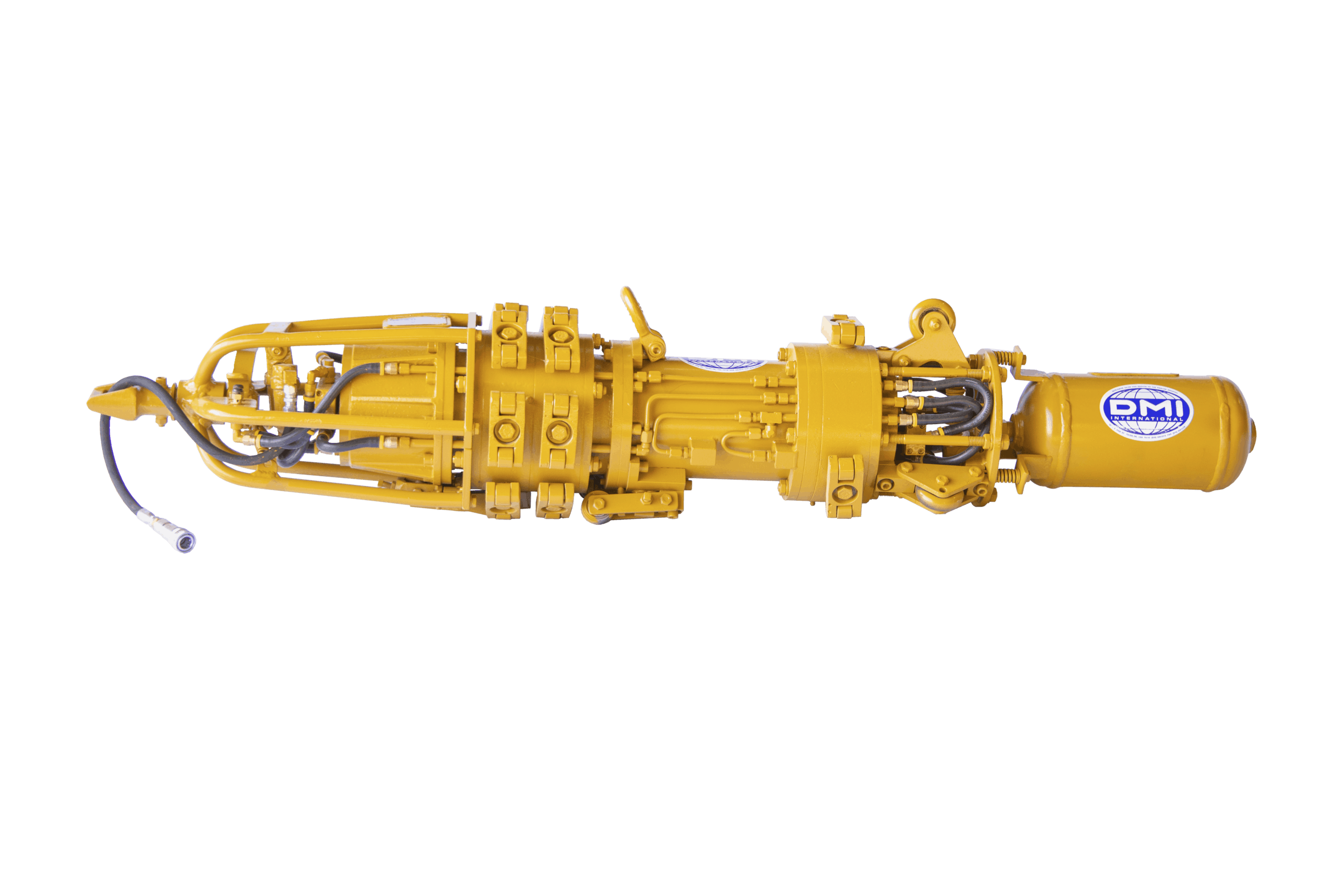

Self-Centering Internal Pneumatic Lineup Clamp
A self adjusting mechanism is provided in the rear of the clamp to center the clamp in the middle of the pipe to reduce offset between the two pipes being joined together.
Self-Centering Internal Pneumatic Lineup Clamp Features
- Automatic centering mechanism helps reduce Hi-Lo
- Adjustable for various wall thickness within clamp’s range
- Spring mounted reserve air tank provides sufficient air pressure for lining up incoming pipe joint
- For efficient operation, the compressed air pressure should be 180-200 PSI (12.4-13.8 Bar)
- Maximum safe working pressure is 225 PSI (15.5 Bar)
- Pneumatic automatic centering clamps available in sizes 6″-14″
- Optional copper back-up shoes
PRODUCT DETAILS
- Automatic centering mechanism helps reduce Hi-Lo
- Adjustable for various wall thickness within clamp’s range
- Spring mounted reserve air tank provides sufficient air pressure for lining up incoming pipe joint
- For efficient operation, the compressed air pressure should be 180-200 PSI (12.4-13.8 Bar)
- Maximum safe working pressure is 225 PSI (15.5 Bar)
- Pneumatic automatic centering clamps available in sizes 6″-14″
- Optional copper back-up shoes
| NON POWERED CLAMP, PULL TYPE | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MODEL | PIPE SIZE (in/mm) | LENGTH (in/mm) | WIDTH (in/mm) | HEIGHT (in/mm) | VOLUME (cu-ft/cu-m) | WEIGHT (lbs/kg) | ||||||
| IPLC 6 | 6 / 152 | 38 / 965 | 5.5 / 140 | 6.5 / 165 | 0.8 / 0.02 | 98 / 45 | ||||||
| IPLC 8 | 8 / 203 | 50 / 1270 | 7.5 / 191 | 7.5 / 191 | 1.6 / 0.05 | 130 / 59 | ||||||
| IPLC 10 2-SECTION | 10 / 254 | 58 / 1473 | 12 / 305 | 12 / 305 | 4.8 / .014 | 178 / 81 | ||||||
| IPLC 10 3-SECTION | 10 / 254 | 58 / 1473 | 12 / 305 | 12 / 305 | 4.8 / 0.14 | 212 / 96 | ||||||
| IPLC 12 2-SECTION | 12-14 / 324-356 | 60 / 1524 | 10.75 / 273 | 10.75 / 273 | 4.0 / 0.11 | 204 / 93 | ||||||
| IPLC 12 3-SECTION | 12-14 / 324-356 | 60 / 1524 | 10.75 / 273 | 10.75 / 273 | 4.0 / 0.11 | 257 / 117 | ||||||
| IPLC 14-16 | 14-16 / 356-406 | 67 / 1702 | 13 / 330 | 13.5 / 343 | 6.8 / 0.19 | 225 / 102 | ||||||
| IPLC 18-20 | 18-20 / 457-508 | 96 / 2438 | 16.5 / 419 | 18.5 / 470 | 17.0 / 0.48 | 418 / 190 | ||||||
| MODEL | PIPE SIZE (in/mm) | LENGTH (in/mm) | WIDTH (in/mm) | HEIGHT (in/mm) | VOLUME (cu-ft/cu-m) | WEIGHT (lbs/kg) | CFM |
|---|---|---|---|---|---|---|---|
| IPLC 10 | 10 / 254 | 62 / 1575 | 10 / 254 | 11.5 / 292 | 4.1 / 0.12 | 300 / 136 | 25 |
| IPLC 12-14 | 12-14 / 305 | 109 / 2769 | 10.75 / 273 | 10.75 / 273 | 7.3 / 0.21 | 294 / 133 | 25 |
| IPLC 14-16 | 14-16 / 356-406 | 112.5 / 2858 | 15 / 381 | 15 / 381 | 14.6 / 0.41 | 550 / 240 | 25 |
| IPLC 16-18 | 16-18 / 406-457 | 91 / 2311 | 13 / 330 | 13 / 330 | 8.9 / 0.32 | 500 / 227 | 25 |
| IPLC 20-22 | 20-22 / 508-559 | 102 / 2591 | 18 / 457 | 18 / 457 | 19.1 / 0.69 | 770 / 349 | 40 |
| IPLC 24-26 | 24-26 / 610-660 | 111 / 2819 | 21 / 533 | 21 / 533 | 28.3 / 1.05 | 1010 / 458 | 40 |
| IPLC 28-30 | 28-30 / 711-762 | 115 / 2870 | 28 / 711 | 28 / 711 | 52.2 / 1.45 | 1290 / 585 | 40 |
| IPLC 30-32 | 30-32 / 762-813 | 115 / 2870 | 28 / 711 | 28 / 711 | 52.2 / 1.73 | 1400 / 635 | 40 |
| IPLC 34-36 | 34-36 / 864-914 | 122 / 3099 | 34 / 864 | 35.5 / 902 | 85.2 / 2.41 | 1700 / 773 | 90 |
| IPLC 36-38 | 36-38 / 914-965 | 128 / 3251 | 36 / 914 | 37.5 / 953 | 100.0 / 2.83 | 1750 / 795 | 90 |
| IPLC 40-42 | 40-42 / 1016-1067 | 141 / 3581 | 38 / 965 | 38 / 965 | 117.8 / 3.94 | 3100 / 1406 | 90 |
| IPLC 46-48 | 46-48 / 1168-1219 | 145 / 3683 | 45 / 1143 | 46.5 / 1181 | 175.6 / 4.97 | 3140 / 1427 | 90 |
| IPLC 52-54 | 52-54 / 1321-1372 | 188 / 4775 | 52 / 1321 | 53.5 / 1359 | 302.7 / 8.57 | 4950 / 2250 | 90 |
| IPLC 56 | 56 / 1422 | 188 / 4775 | 54 / 1372 | 55.5 / 1410 | 326.1 / 9.23 | 5400 / 2455 | 90 |
| IPLC 60 | 60 / 1524 | 191 / 4851 | 58 / 1473 | 60 / 1524 | 384.7 / 10.89 | 6000 / 2727 | 90 |
