Dual Head Iron Roller Cradle
Dual Head Iron Roller Cradle Features
- Various cradle assemblies for pipe sizes 12″ (305MM) through 60″ (1524MM) welded seam hang-up
- Slings for pipe sizes 12″ (305MM) through 24″ (610MM)
- Designed load capacity ensures safe handling of heavy wall pipe

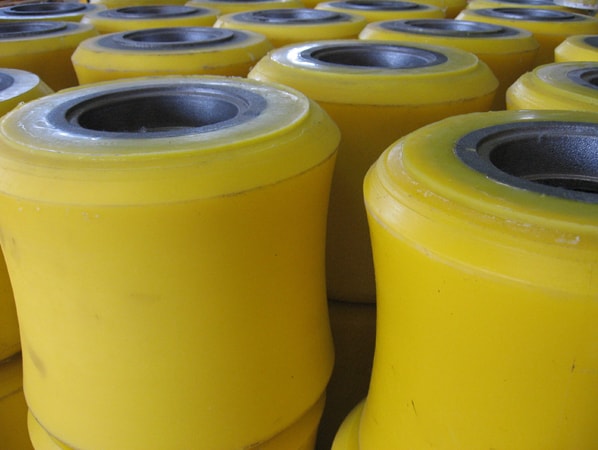

- Multiple urethane rollers spaced to support the pipe evenly
- Replacement urethane cradle rollers available
- Custom sizes available upon request
- Head Iron designed using finite element analysis per ASME BTH-1, Service Class 0, Design Category A
- The wire rope assembly meets ANSI B-30-9 sling requirements, OSHA 1910.184 sling requirements and OSHA 1926.251 material handling requirements
PRODUCT DETAILS
NOTE: Each cradle has 2 cable strands looped over the head iron.
NOTE: A safety factor of 5:1 is used on the wire rope to determine working loads. Capacities should be recalculated if local laws or regulations require a different safety factor.
CAUTION: Care must be taken to be sure the recommended working load is not exceeded in use.
NOTE: Dimensions are with units collapsed for shipping.
Roller Cradles and Slings are designed for vertical lifting only.
